Flexible Hoses

Home Flexible Hoses
Product information

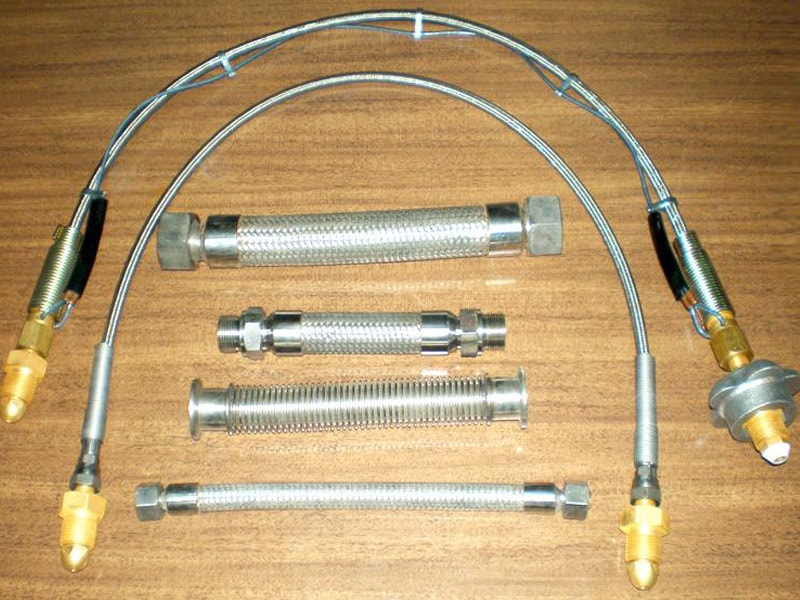

Flexible Hoses

Flexible Houses

Detail Specifications

Hoses are the flexible connections that are used for fluid transfer usually used to connect cylinders to manifold, regulator to equipment and serves many other purposes in the Gas Sector. Hoses are usually preferred as they are flexible, light weighted and are easy to operate.

We at Sri Venkateshwara Engineering manufacture Hoses that are designed to withstand for high pressure as well as vacuum pressure. Hoses are designed with a burst pressure of 4 times than the working pressure of the product. All the Hoses manufactured at SVE will be tested under Hydraulic Pressure as well as Pneumatic Pressure.

Dimension

 Inner diameter Wall Thickness

Internal

Construction		 External Construction Working Pressure Burst Pressure Minimum Bend Radius

Inch
mm
mm
Bar
Bar
mm

1/4
6.35
0.7
PTFE
SS single Braiding
175
700
45

1/4
6.35
0.7
PTFE
SS double Braiding
250
1000
45

1/4
6.35
1.0
SS304/SS321
SS double Braiding
330
1320
45

3/8
9.5
0.7
PTFE
SS Single Braiding
125
500
55

1/2
12.7
0.7
PTFE
SS single Braiding
115
460
70
1/2
12.7
0.8
SS304/SS321
SS Single Braiding
145
580
70
3/4
19
0.8
PTFE
SS Single Braiding
90
360
190
1
25.4
0.8
PTFE
SS Single Braiding
65
260
270

Our Products

Gas Manifold with PRS System
Vacuum Jacketed Pipeline
High Pure Gas Handling System
Quads / Cascades
Manifold Cylinder Pallet
Gas Filling Station
Hydraulic Cylinder Testing Station
Centralized Gas Piping / Tubing
Gas Blender / Gas Mixer
Flexible Hoses
High Pressure Main Valve
Pressure Relief Valve
Atmospheric Vaporizers
Regulators for Gas Systems
Fittings & Valves
Flash Back Arrestors

Leave a comment

Product information

Category:
Flexible Hoses
Client:
Cylinder users
Gas Service:
Our Flexible hoses are used in all cyclinders
Product Brochure:
Flexible Hoses
All Product Brochure
SVE Brochure
